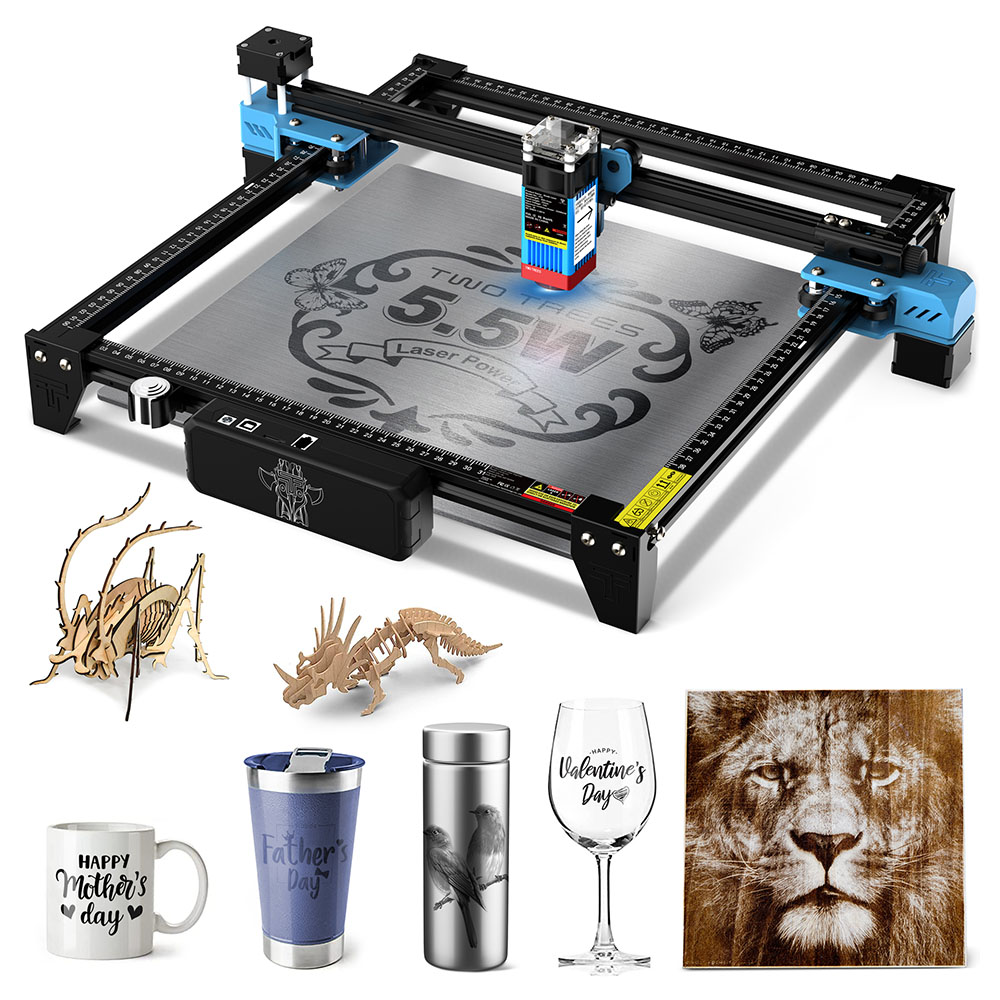

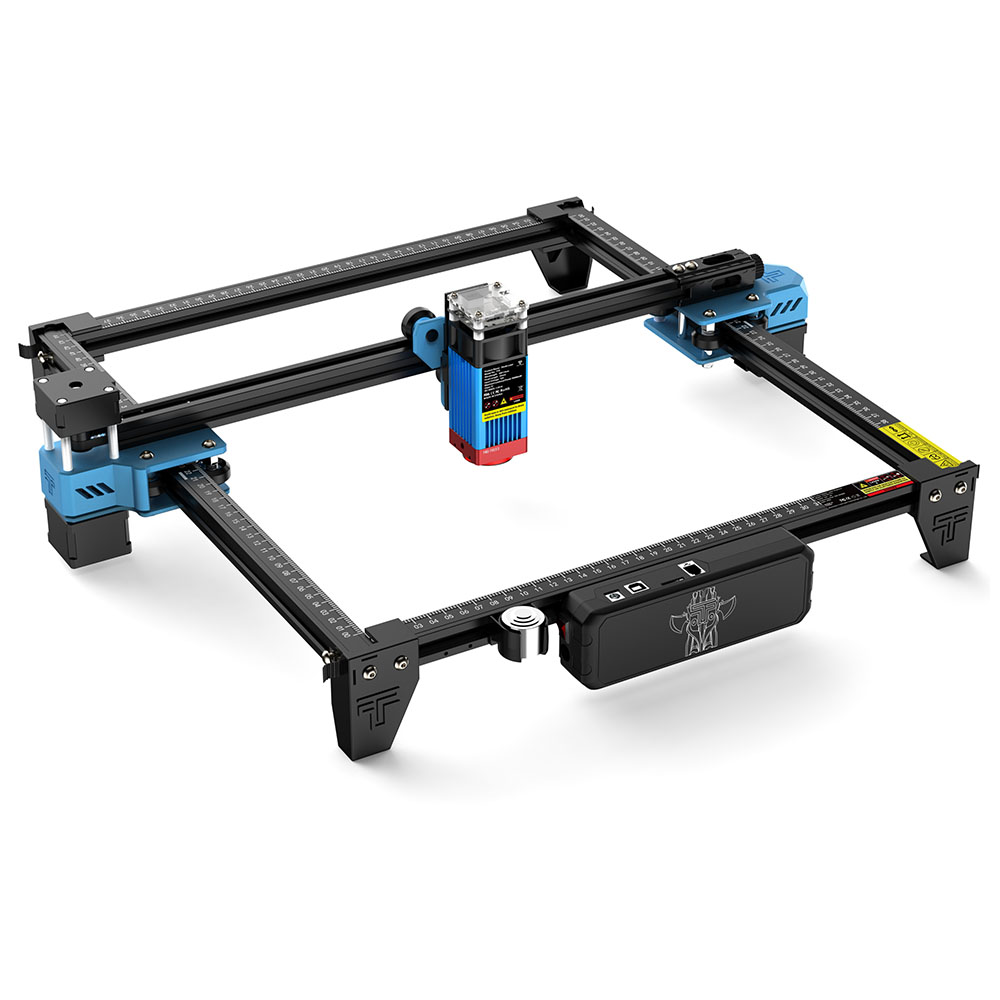

TWO TREES TTS-55 Pro 5.5W Laser Engraver, 32-bit Mainboard, 0.08*0.08mm Compressed Spot, 0.1mm Precision, 300*300mm
$302.47
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights
32-bit Motherboard
The motherboard features a 32-BIT dual-core MCU for faster processing, with an engraving speed up to 30,000mm/min. The laser can engrave both online and offline (via TF card). With the built-in Wi-Fi module, you can also use a mobile phone app or a computer web interface for engraving.
Perfectly Compatible System
Use LaserGRBL or LightBurn (the most popular paid carving software, very easy to use). Supports Windows XP, 7, 8, 10 (with LaserGRBL), and Mac OS, and Linux (with LightBurn).
Advanced Laser Technology
The TTS-55 PRO laser module uses the latest LD+FAC+C-Lens compression spot technology. It has a fixed focus with a focal length of only 23mm. Compared to long-focus lasers, this short-focus laser has stronger engraving and cutting abilities. Engraving accuracy is 0.1mm.
Engraving and Cutting Capability

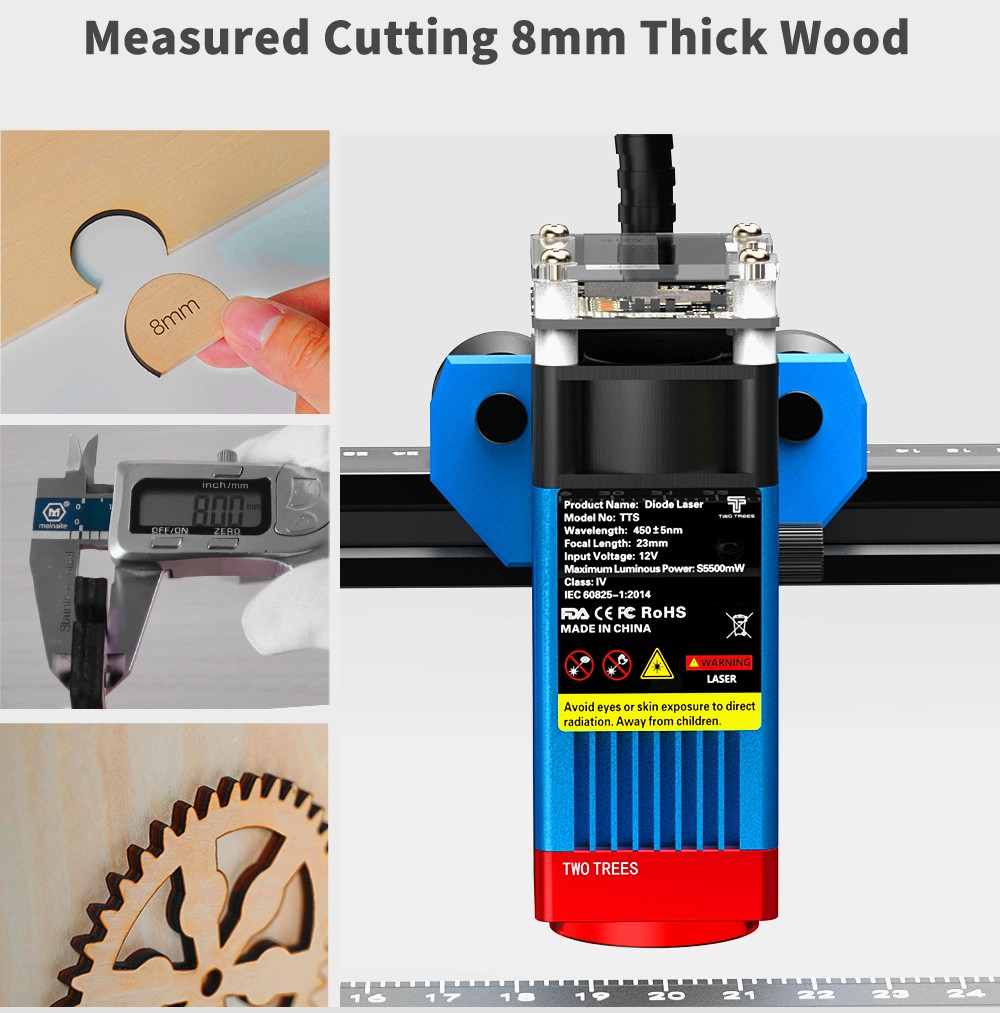

The TTS-55 laser can engrave wood, plastic, paper, leather, bamboo, sponge paper, alumina, stainless steel, chevron board, acrylic, glass, and more. It can cut up to 5mm plywood, 3mm acrylic board, 3mm carton, 0.7mm leather, and more. The working area is 300x300mm.
Specification
| General | Brand: TWO TREES Type: Laser Engraver Cutter Model: TTS-55 Pro Color: Black |
| Specification | Engraving area: 300*300mm Engraving accuracy: 0.1mm Laser power: 5.5W Engraving speed: 30000mm/min Laser wave: 455±5nm Input power: 48W Data transmission type: USB /WiFi connection/Touch screen offline control Document format: NC, DXF, BMP, JPG, PNG, GCODE Operating software: Laser GRBL, LightBurn, with Win XP/Win7/Win 8/Win10/Win 11 and Mac system(LightBurn) |
| Weight & Size | Product Weight: 3.8kg Package Weight: 3.8kg Package Size(L x W x H): 51x18.5x18.5cm |
| Package Contents |
1 x 5.5W Laser 1 x 11mm Fixed-length Column 4 x Foot Pad 1 x Power Adapter 1 x Y-axis Right Frame 1 x Y-axis Left Frame 1 x Y-axis Front Profile 1 x Y-axis Back Profile 1 x X-axis Beam 1 x Carriage and Lifting Module 1 x Tensioner Module 1 x Motherboard and Wires 1 x Bellow X-axis Holder 1 x Bellow Holder 1 x Fixed-length Column Seat 2 x M3*8 2 x M3*6 2 x M3*20 2 x M4*20 3 x M4*50 4 x M5*10 8 x M5*20 1 x SD Card 1 x Card Reader 1 x Tool Kit 1 x USB Cable |
| General | Brand: TWO TREES Type: Laser Engraver Cutter Model: TTS-55 Pro Color: Black |
| Specification | Engraving area: 300*300mm Engraving accuracy: 0.1mm Laser power: 5.5W Engraving speed: 30000mm/min Laser wave: 455±5nm Input power: 48W Data transmission type: USB /WiFi connection/Touch screen offline control Document format: NC, DXF, BMP, JPG, PNG, GCODE Operating software: Laser GRBL, LightBurn, with Win XP/Win7/Win 8/Win10/Win 11 and Mac system(LightBurn) |
| Weight & Size | Product Weight: 3.8kg Package Weight: 3.8kg Package Size(L x W x H): 51x18.5x18.5cm |
| Package Contents | 1 x 5.5W Laser 1 x 11mm Fixed-length Column 4 x Foot Pad 1 x Power Adapter 1 x Y-axis Right Frame 1 x Y-axis Left Frame 1 x Y-axis Front Profile 1 x Y-axis Back Profile 1 x X-axis Beam 1 x Carriage and Lifting Module 1 x Tensioner Module 1 x Motherboard and Wires 1 x Bellow X-axis Holder 1 x Bellow Holder 1 x Fixed-length Column Seat 2 x M3*8 2 x M3*6 2 x M3*20 2 x M4*20 3 x M4*50 4 x M5*10 8 x M5*20 1 x SD Card 1 x Card Reader 1 x Tool Kit 1 x USB Cable |
| SKU | 523681 |
