TWO TREES TTC450: 500W Air Cooled Spindle Motor
$146.99
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights

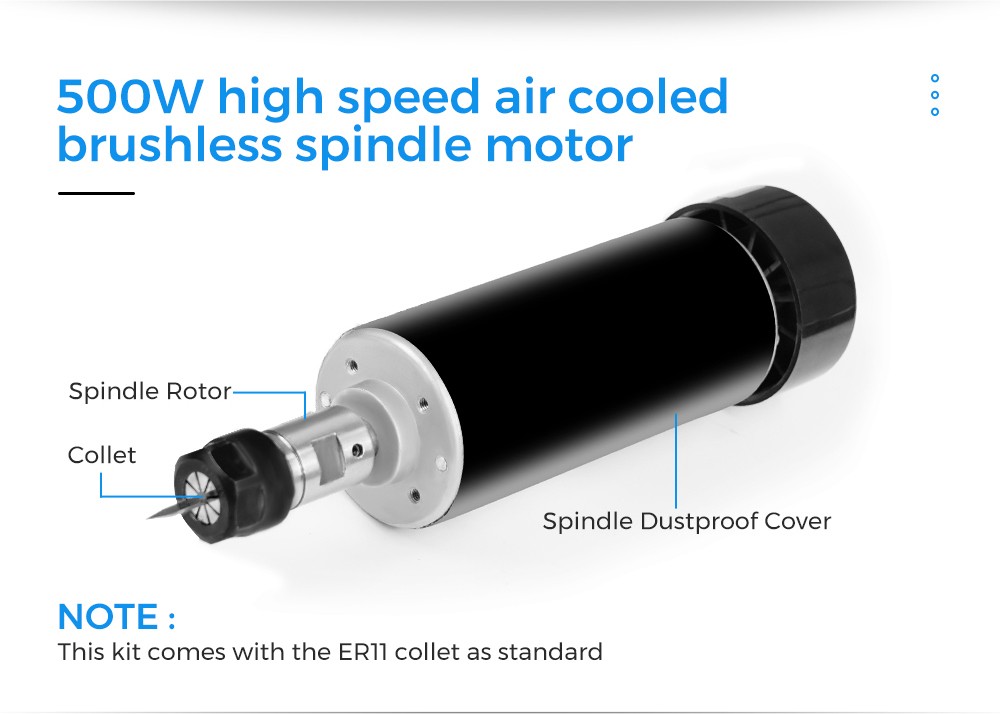

500W CNC Spindle Motor

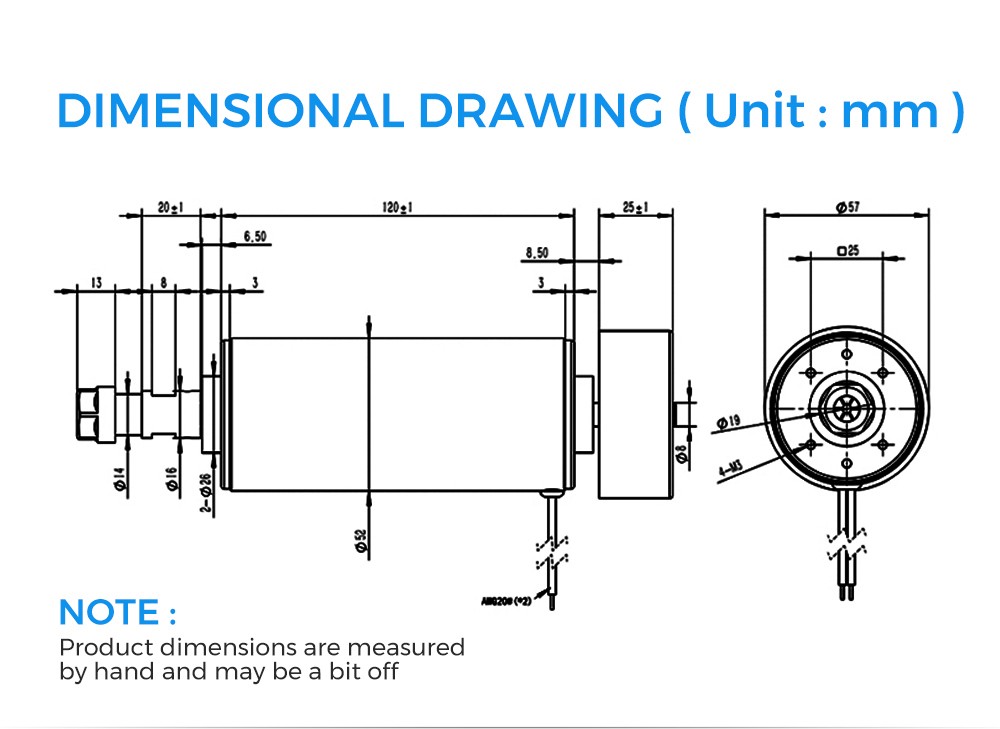

Operating voltage: 100VDC, power: 500W, input: AC110V, idle speed: 11,000 rpm, torque: 0.6Nm. Insulation resistance: > 2 megahm, shock resistance: 400 V. Motor length 200 mm, high-precision spindle output 0.01-0.03.
High-quality Material

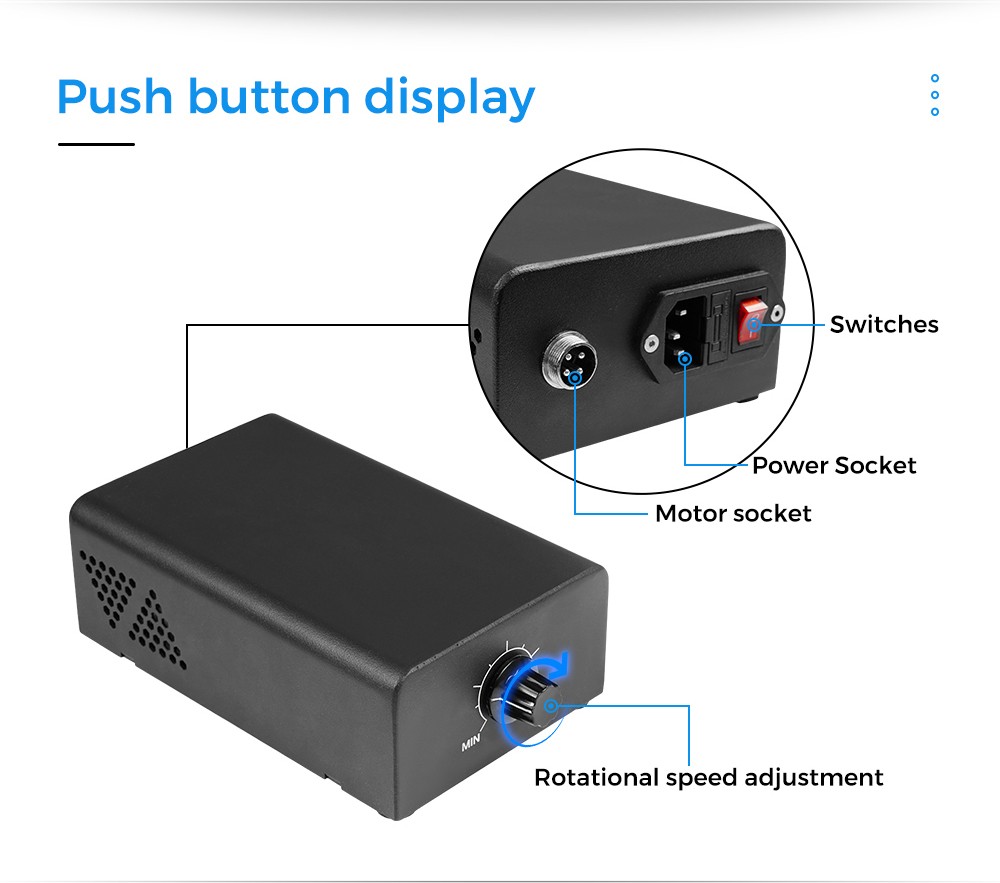

The spindle motor holder is made of high-quality die-cast aluminum, robust and durable. The power supply is integrated into a control box, making it safer and easier to clean. The spindle is equipped with forced air cooling that can work for a long time.

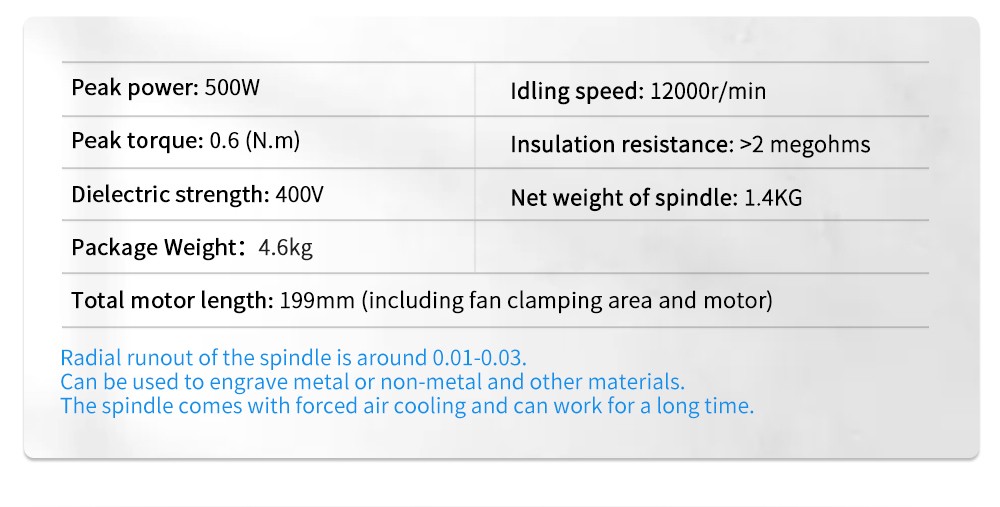

Specification
| General | Brand: TWO TREES Type: Spindle Motor Model: TTC450 Color: Black |
| Specification | Peak power: 500W Idling speed: 12000rpm/min Peak torque: 0.6 (N.m) Insulation resistance: >2 megohms Dielectric strength: 400V Total motor length: 199mm (including fan clamping area and motor) |
| Weight & Size | Product Weight: 1.4kg Package Weight: 3.05kg Package Size(L x W x H): 27x25.7x9.5cm |

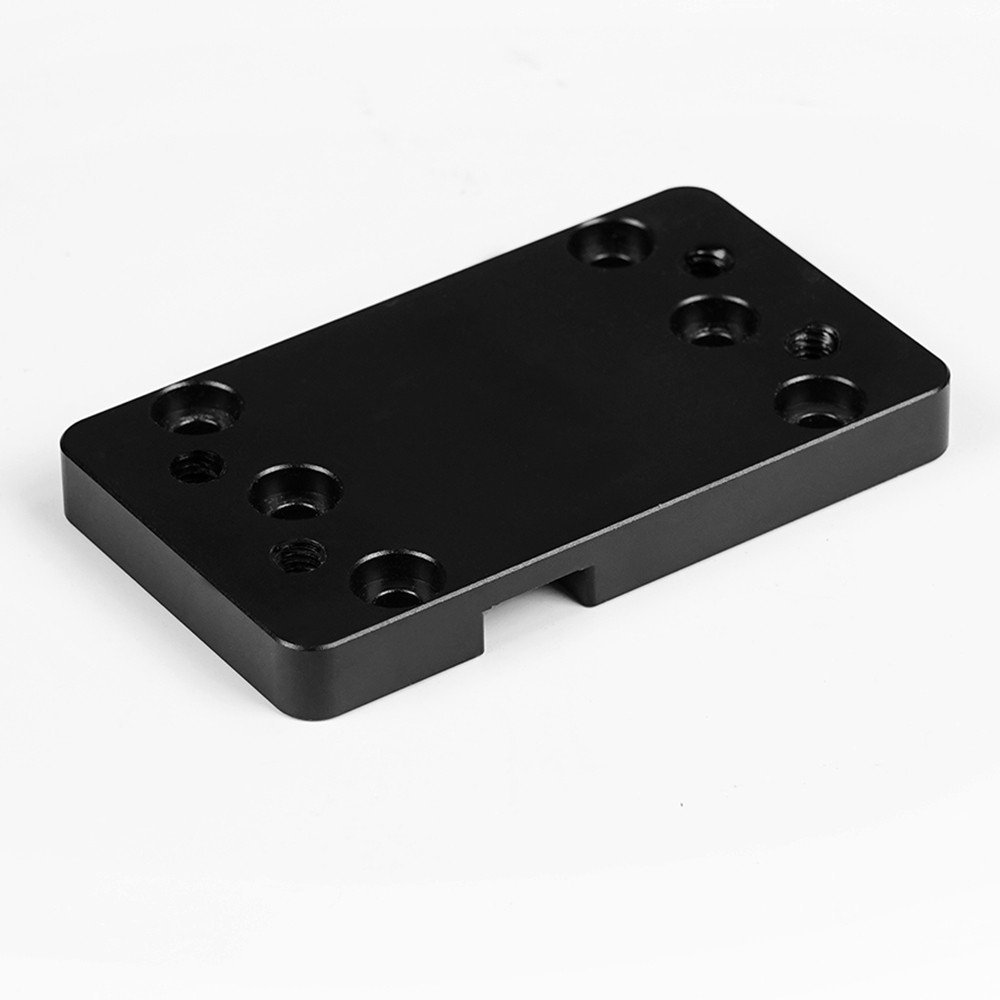

| Package Contents | 1 x 500 W Air-Cooled Spindle Motor 1 x Integrated Speed Controller with Control Box 1 x 52 Mm Mounting Bracket 1 x Mounting Plate 1 x Power Cord 1 x Motor Control Cable 2 x Allen Keys 10 x Screws |
| General | Brand: TWO TREES Type: Spindle Motor Model: TTC450 Color: Black |
| Specification | Peak power: 500W Idling speed: 12000rpm/min Peak torque: 0.6 (N.m) Insulation resistance: >2 megohms Dielectric strength: 400V Total motor length: 199mm (including fan clamping area and motor) |
| Weight & Size | Product Weight: 1.4kg Package Weight: 3.05kg Package Size(L x W x H): 27x25.7x9.5cm |
| Package Contents | 1 x 500 W Air-Cooled Spindle Motor 1 x Integrated Speed Controller with Control Box 1 x 52 Mm Mounting Bracket 1 x Mounting Plate 1 x Power Cord 1 x Motor Control Cable 2 x Allen Keys 10 x Screws |
| SKU | 522342 |
