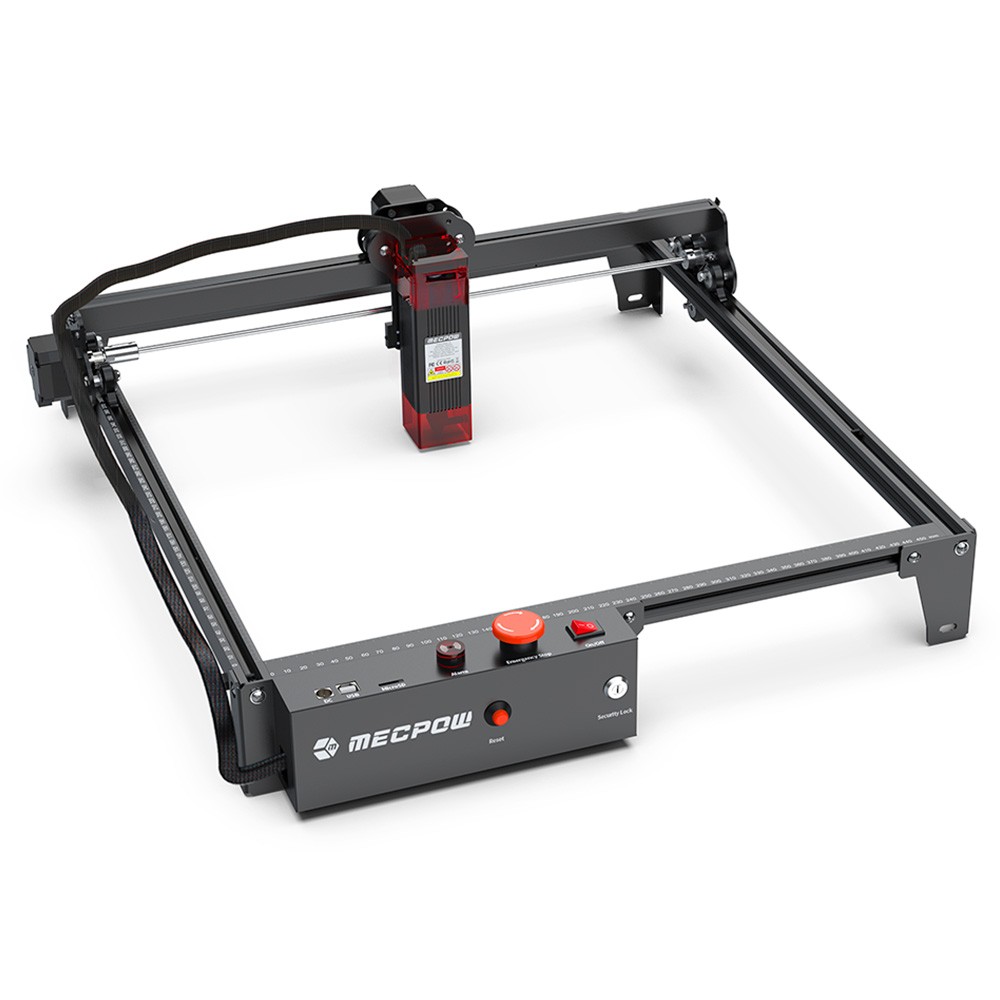

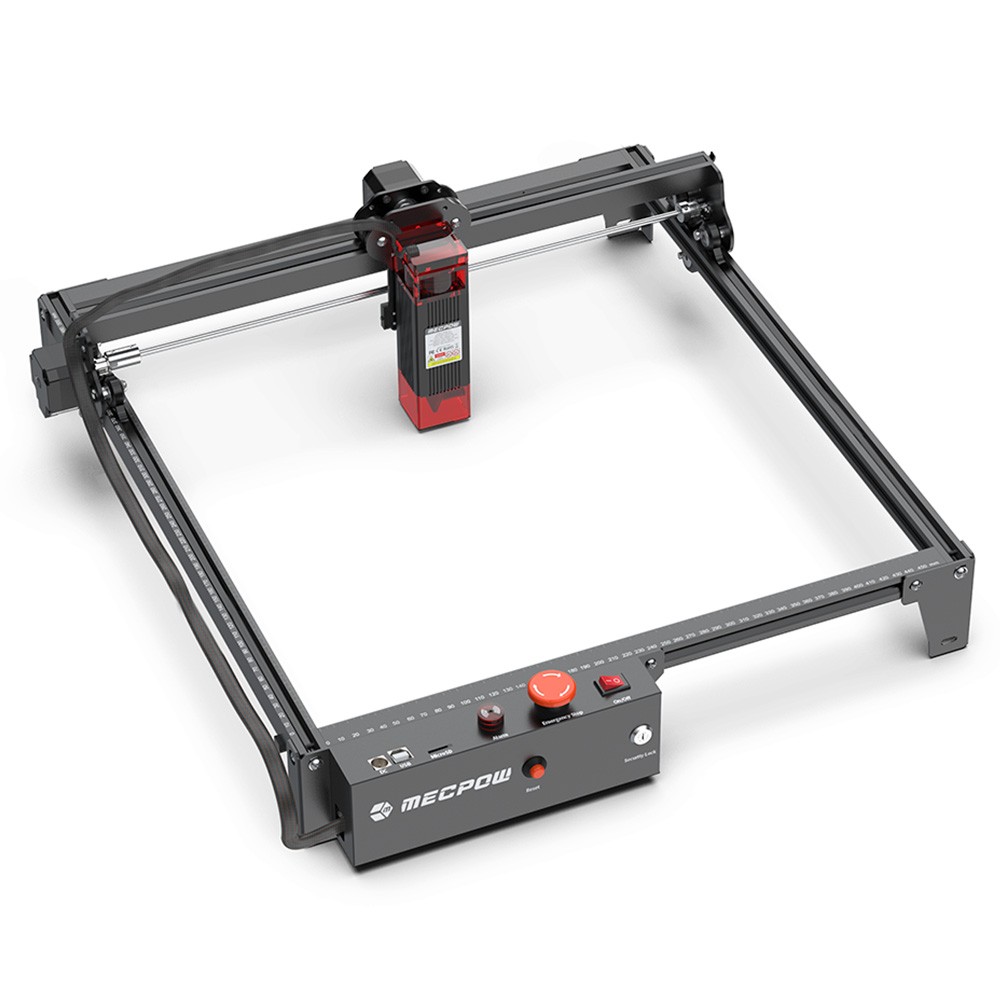

Mecpow X3 Laser Engraver, 5W Laser Power, Fixed-Focus, 0.01mm Accuracy, 10000 mm/min Engraving Speed, Safety Lock, Emergency Stop, Flame Detection, Gyroscope Sensor, 410x400mm - US Plug
$139.99
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights

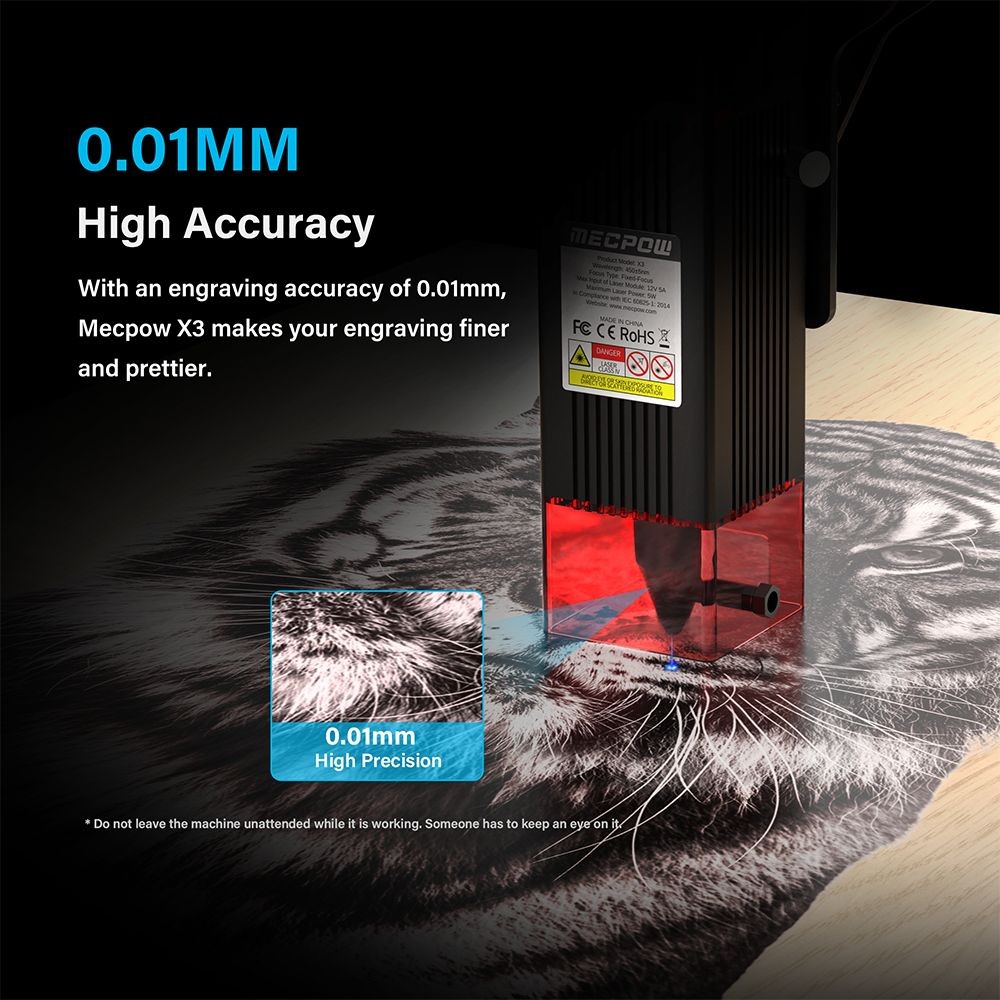

High-Precision Engraving
The Mecpow X3 adopts a 5W diode laser with a small focus of 0.05x0.07mm and an engraving accuracy of 0.01mm. The small spot size, along with short pulses, produces high peak power, which can achieve more accurate and deeper engraving and cutting. It can cut a wood board with an 8mm thickness and an acrylic board with an 8mm thickness.

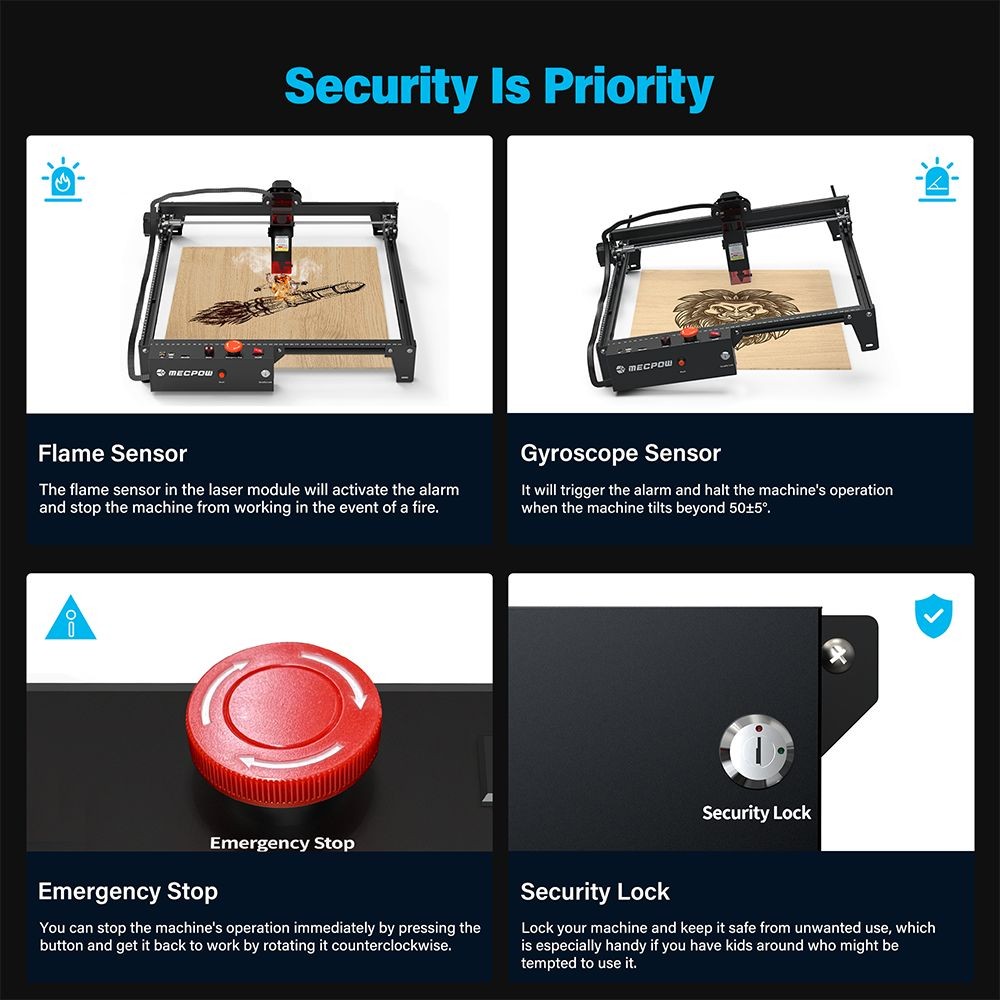

Upgraded Security
The X3 machine boasts a flame sensor and a gyroscope sensor, which can trigger the alarm and stop the machine’s operation in the event of fire or tilting more than 50±5°. Besides, limit switches are included to prevent accidents and reduce wear by stopping the machine from moving beyond its safe limits, leading to a longer lifespan of the laser engraver. Furthermore, you can stop the machine anytime by pressing the emergency stop button and lock the machine to keep it safe from unwanted use, which is especially handy if you have kids around.

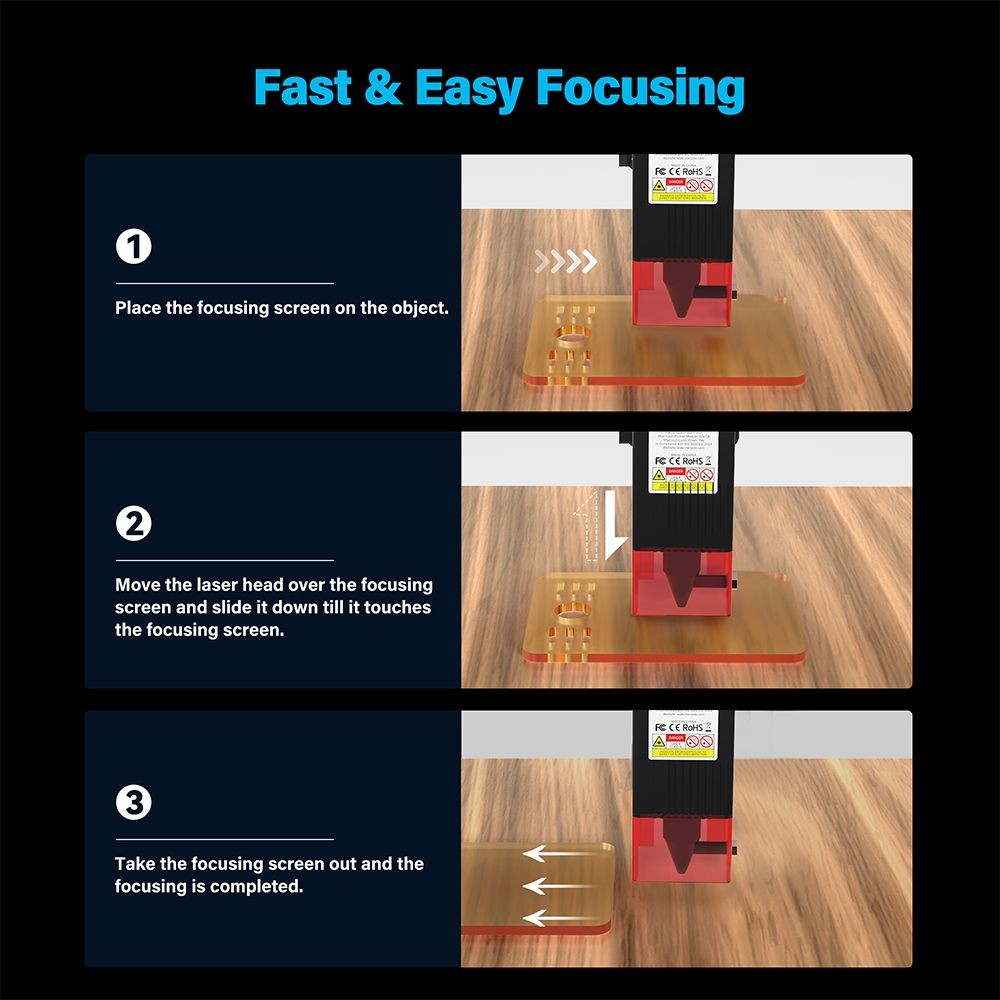

Fast & Easy Focusing
The X3 laser engraver comes with a fixed-focus laser that saves your time in adjusting the focus and a focusing screen that helps you move the laser head to the correct position. Slide down the laser head till it touches the focusing screen on the object and then remove the focusing screen.
Eye Protection
The laser engraving machine is equipped with a laser shield on the laser module, which can filter out diffuse light from the laser spot to a large extent. A pair of laser safety goggles is also included for better eye protection.
Wide Application and Compatibility
The X3 engraving machine can be used for engraving on a variety of materials, including wood, acrylic, leather, bamboo, fabric, stainless steel, etc. It is compatible with LaserGRBL (Windows only) and LightBurn (Windows and Mac OS), supporting various file formats, including JPG, PNG, DXF, TIF, PDF, SVG, AI, NC, BMP, etc.
Specification
|
General |
Brand: Mecpow |
|
Specification |
Frame Material: High-Strength Aluminium Alloy |
|
Features |
Alarm: Yes |
|
Weight & Size |
Product Weight: 3.62 kg |
|
Package Contents |
1 x Laser Engraving Machine (Unassembled) |
| General | Brand: Mecpow Type: Laser Engraving Machine Model: X3 Color: Black |
| Specification | Frame Material: High-Strength Aluminium Alloy Power Adapter: AC 100V-240V, 50/60HZ (Input), DC 12V 5A (Output) Electrical Power: 60W Laser Power: 5±0.5W Wavelength: 445±5 nm Spot Size of Laser Beam: 0.05x0.07 mm Engraving Area: 410x400 mm Engraving Speed: 10000 mm/min Engraving Accuracy: 0.01 mm Focusing: Fixed-Focus Laser Laser Shield: Yes Service Life: ≥10000 Hours Heat Dissipation: Fan Cooling Tilt Alarm: 50±5deg Method of Data Transmission: USB Wired Connection (Type-B) Materials for Laser Engraving: Wood, Acrylic, China, Fabric, Bamboo, Plastic Board, Leather, Fruit, Bread, etc. System Support: Windows, Mac Software Support: LaserGRBL (Free Software for Windows), |
| Features | Alarm: Yes Emergency Stop: Yes Reset Button: Yes Security Lock: Yes Flame Sensor: Yes Gyroscope Sensor: Yes Limit Switches: 2 |
| Weight & Size | Product Weight: 3.62 kg Package Weight: 4.31 kg Product Size(L x W x H): 510x460x117 mm Package Size(L x W x H): 659x249x117 mm Size of Laser Module(L x W x H): 40x40x60 mm |
| Package Contents | 1 x Laser Engraving Machine (Unassembled) 1 x User Manual 1 x Laser Goggles 1 x USB Cable 1 x Power Adapter 1 x Tool Kit 2 x Wood Board 1 x Aluminium Plate 1 x Focusing Screen 2 x Key |
| SKU | 521253 |
