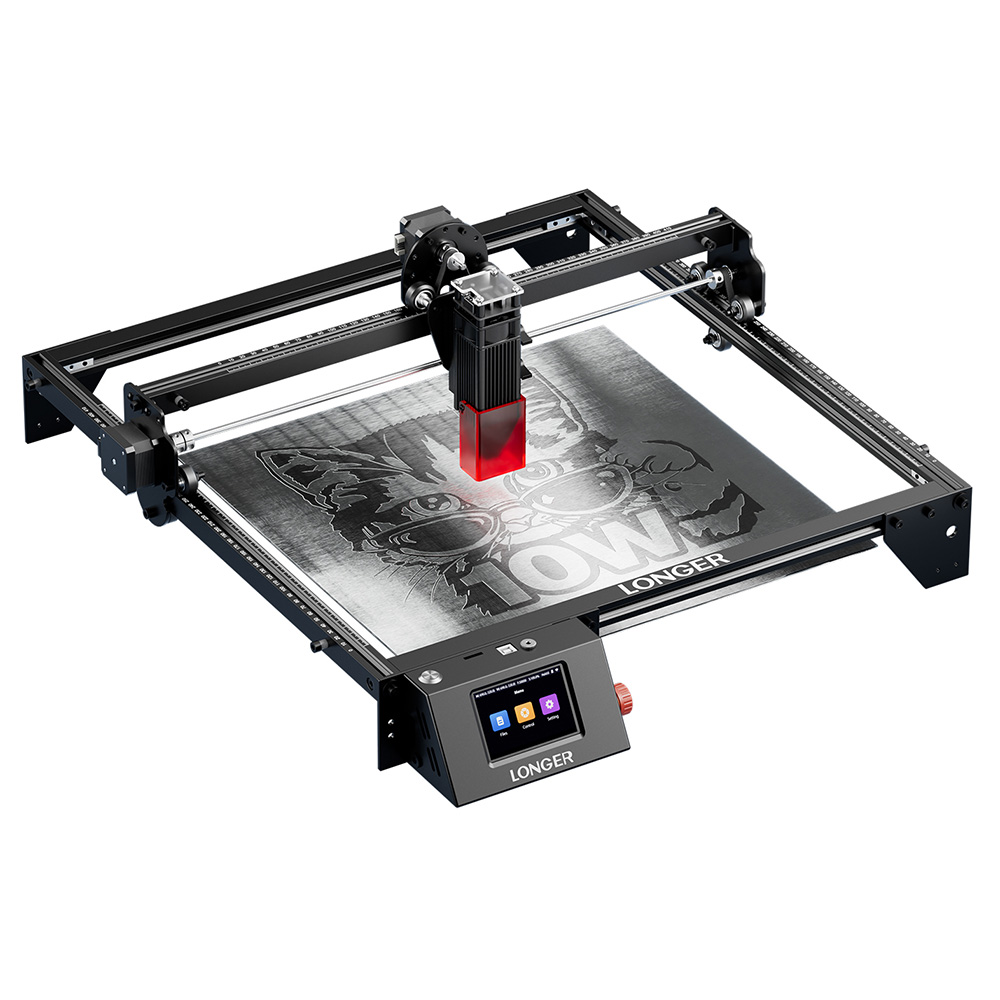

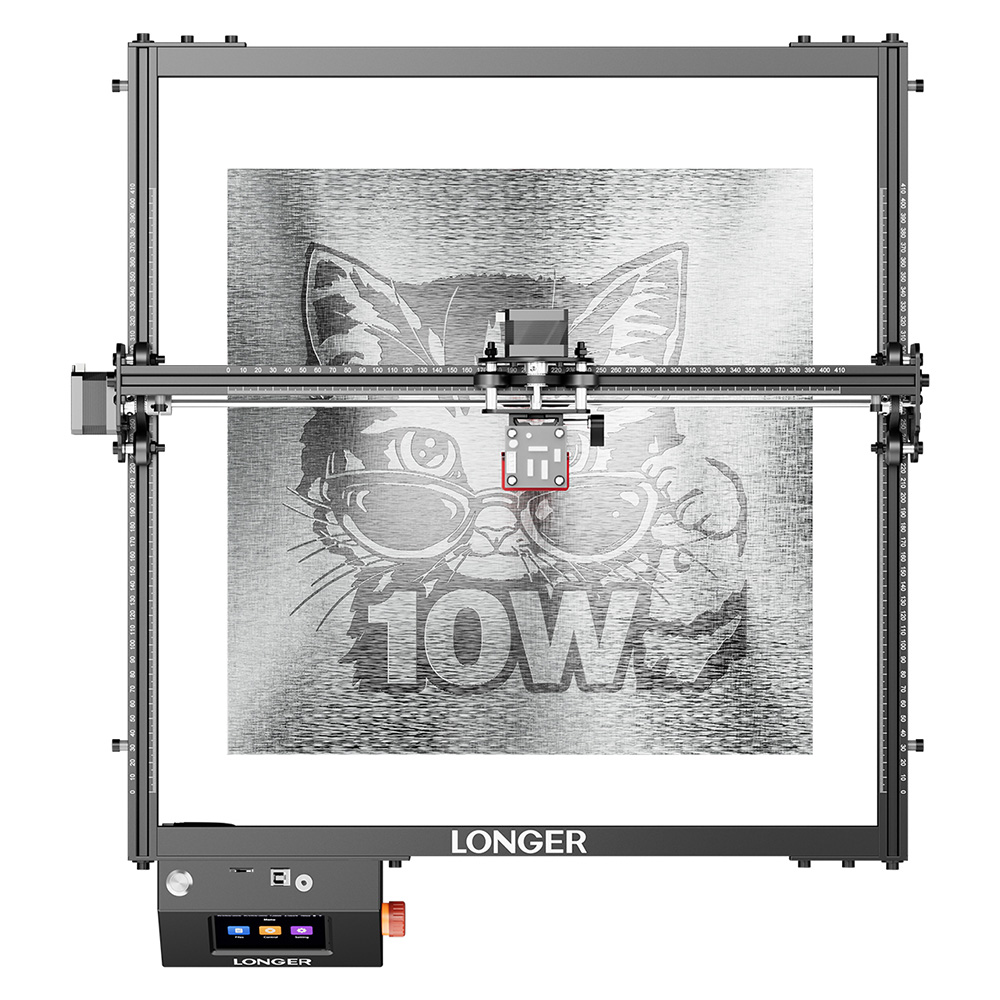

LONGER RAY5 10W Laser Engraver, 0.06x0.06mm Spot, 3.5'' Touch Screen & Offline Carving, 32-Bit Chipset, WiFi Connection, 24000mm/min Max Speed, 400mmx400mm
$331.41
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights
Ultrafine Laser Point & 10W Powerful Laser Module
With dual beam technology, Ray5 10W has a stronger laser power, which enables better cutting and engraving capacity. It is able to cut 20mm thick wood board and 30mm acrylic. It features a 400x400mm engraving size and 24000mm/min engraving speed. Ray5 adopts the latest compressed laser technology, which generates an ultra-fine laser spot of 0.06x0.06mm, two times thinner than ordinary lasers.
Offline Engraving & Multiple Ways for Data Transfer
It supports offline engraving and cutting functions, so there's no computer connection is needed while engraving and cutting, making the operation easier for you to meet various DIY requirements. Wi-Fi, USB cable, APP, and TF cards are supported to transfer the data.

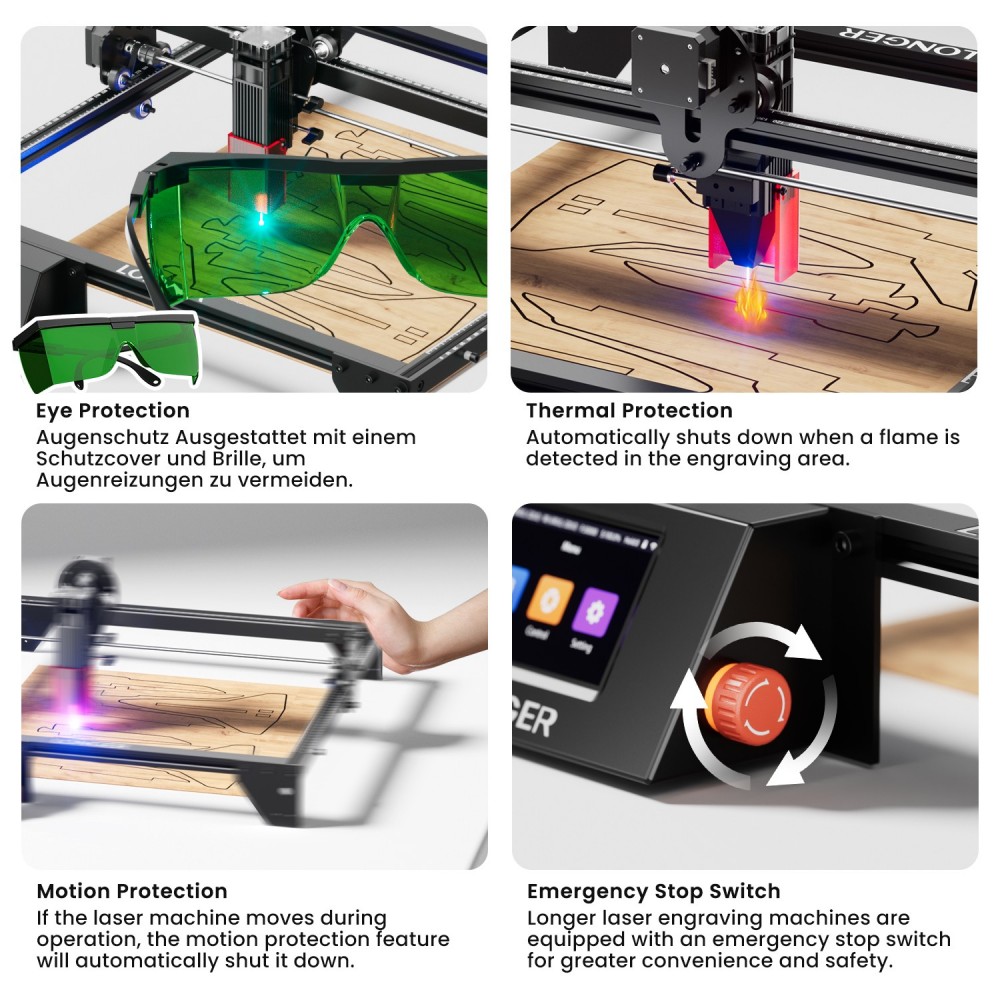

3 Safety Protection
LONGER RAY5 10W laser engraver is designed with flame protection, move protection, and motionless protection functions. When Ray5 detects any accidental flame while working, flame protection will automatically stop the laser and generate a continuous buzz alarm. When the engraving machine is accidentally displaced or tilted, the machine will automatically shut down for personal safety. The laser will be turned off automatically when the laser module is frozen for over 15 seconds.
32-Bit Chipset
Ray5 is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with the 8-bit chipsets.

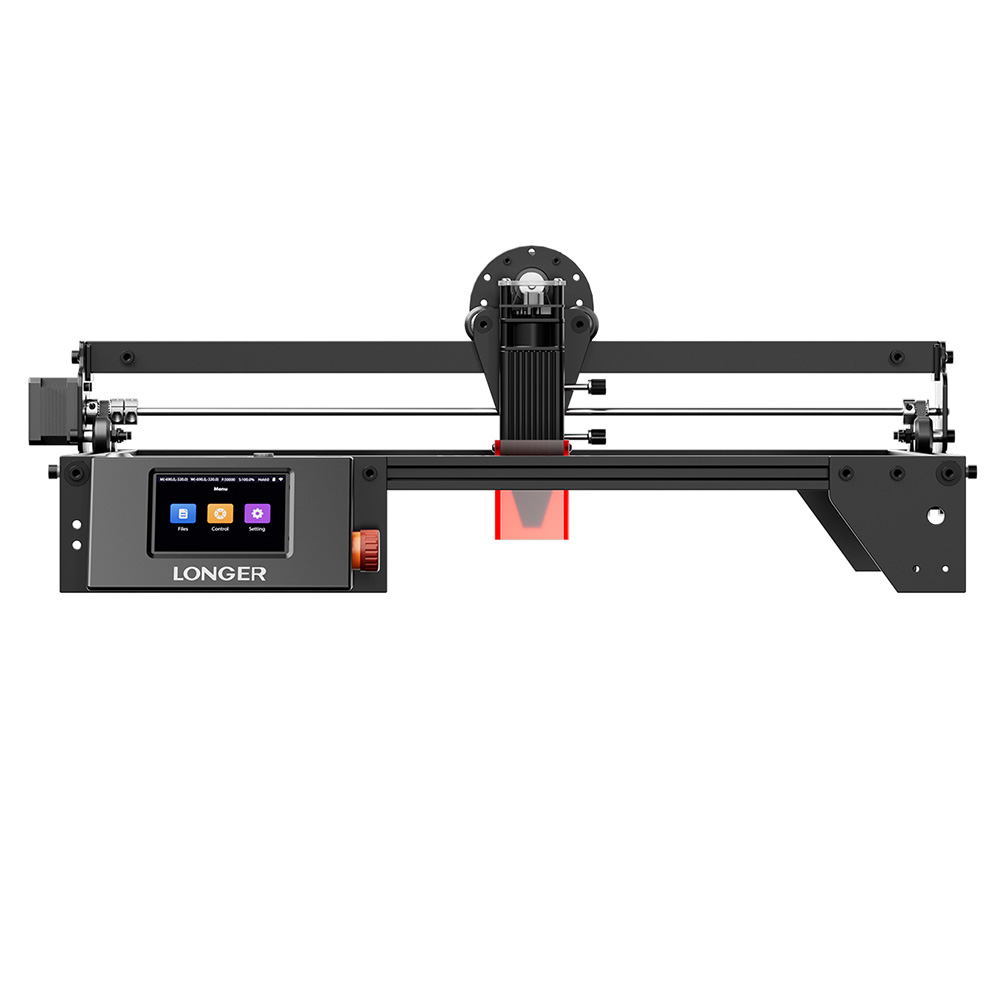

3.5-inch Touch Screen & Wide Applicable
Ray5 10w with a 3.5-inch touch screen added new functionality like multiple ways for data transfer and multiple machine control. Compared to other laser engravers, it can engrave up to 1000+ materials.
Wide Software Compatibility
This machine is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7+, macOS, and Linux, supports JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. carving file formats.
Specification
| General | Brand: LONGER Type: Laser Engraver Model: RAY5 10W Color: Black |
| Specification |
Laser Technology: Dioser Technology
Working Area: 400x400mm (15.75x15.75inch) Laser Wavelength: 450nm Focal Length: Fixed Focus-50mm Laser Spot Size: 0.06x0.06mm Optical Output Power: 10W Z Axis-Height Range: Up to 47mm Fastest Working Speed: Speed 24000mm/min Engraver Output: DC 24V 2.5A Engraver Input: AC 110-240V Software: LaserGRBL and LightBurn Connection: USB/TF Card/WiFi Carving File Formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. |
| Weight & Size | Package Weight: 6.5 kg Package Size(L x W x H): 62.5 x 30.5 x 14cm |
| Package Contents | 1 x Laser Engraver 1 x User Manual |
| General | Brand: LONGER Type: Laser Engraver Model: RAY5 10W Color: Black |
| Specification | Laser Technology: Dioser Technology Working Area: 400x400mm (15.75x15.75inch) Laser Wavelength: 450nm Focal Length: Fixed Focus-50mm Laser Spot Size: 0.06x0.06mm Optical Output Power: 10W Z Axis-Height Range: Up to 47mm Fastest Working Speed: Speed 24000mm/min Engraver Output: DC 24V 2.5A Engraver Input: AC 110-240V Software: LaserGRBL and LightBurn Connection: USB/TF Card/WiFi Carving File Formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc. |
| Weight & Size | Package Weight: 6.5 kg Package Size(L x W x H): 62.5 x 30.5 x 14cm |
| Package Contents | 1 x Laser Engraver 1 x User Manual |
| SKU | 524126 |
