FNIRSI DSO153 Digital Oscilloscope, 2.8inch Screen, Automatic Adjustment, 1000mAh Lithium Battery, 1KHz Calibration Square Wave, 1Mhz Bandwidth, 5MS/s Sample Rate, Premium Version
$45.99
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights
This DSO153 oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and a complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals and can measure up to ± 400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. In addition, it also comes with a multiple-function signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Specification
| General | Brand: FNIRSI Type: Digital Oscilloscope Model: DSO153 Color: Black+Blue |
| Specification | Sampling rate: 5MS/s Bandwidth: 1M Vertical sensitivity: 10mV/Div-10V/Div Time base range: 500ns-20S Voltage range: X1: ±40V(Vpp: 80V); X10: ±400V(Vpp: 800V) Trigger mode: Automatic/Normal/Single Trigger edge: Rising edge /falling edge Coupling: AC/DC Frequency: 0-10KHz Duty cycle: 0-100% (rectangular and sawtooth waves) Amplitude: 0.1-3.3V Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, sink pulse, Lorentz wave. Display: 2.8 inches/PPI:320*240 USB charging: 5V/1A Lithium battery capacity: 1000mAh |
| Weight & Size | Product Weight: 104g Package Weight: 256g Package Size(L x W x H): 14.8x8.6x4cm |

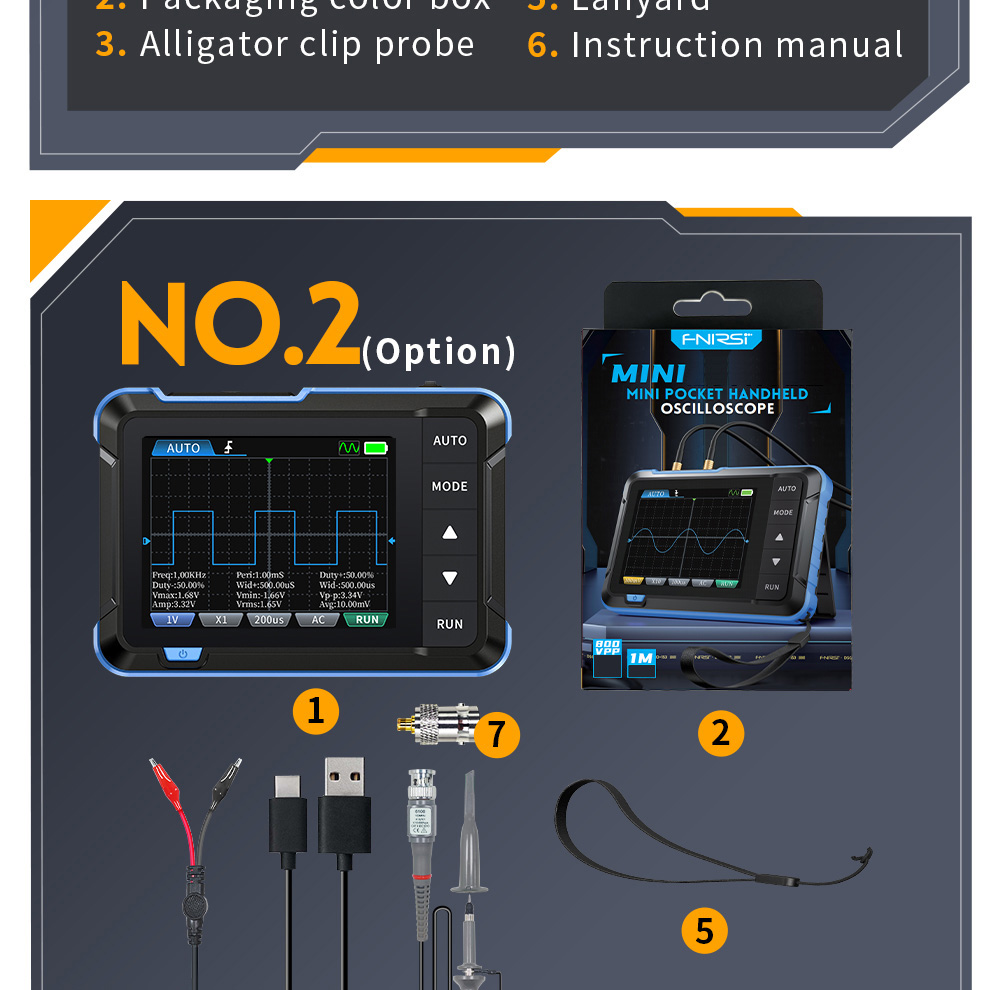

| Package Contents | 1 x Digital Oscilloscope 1 x Packaging Box 1 x Charging Cable 1 x Alligator Clip Probe 1 x Lanyard 1 x User Manual 1 x Adapter 1 x P6100 High Voltage Probe |
| General | Brand: FNIRSI Type: Digital Oscilloscope Model: DSO153 Color: Black+Blue |
| Specification | Sampling rate: 5MS/s Bandwidth: 1M Vertical sensitivity: 10mV/Div-10V/Div Time base range: 500ns-20S Voltage range: X1: ±40V(Vpp: 80V); X10: ±400V(Vpp: 800V) Trigger mode: Automatic/Normal/Single Trigger edge: Rising edge /falling edge Coupling: AC/DC Frequency: 0-10KHz Duty cycle: 0-100% (rectangular and sawtooth waves) Amplitude: 0.1-3.3V Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, sink pulse, Lorentz wave. Display: 2.8 inches/PPI:320*240 USB charging: 5V/1A Lithium battery capacity: 1000mAh |
| Weight & Size | Product Weight: 104g Package Weight: 256g Package Size(L x W x H): 14.8x8.6x4cm |
| Package Contents | 1 x Digital Oscilloscope 1 x Packaging Box 1 x Charging Cable 1 x Alligator Clip Probe 1 x Lanyard 1 x User Manual 1 x Adapter 1 x P6100 High Voltage Probe |
| SKU | 524163 |
