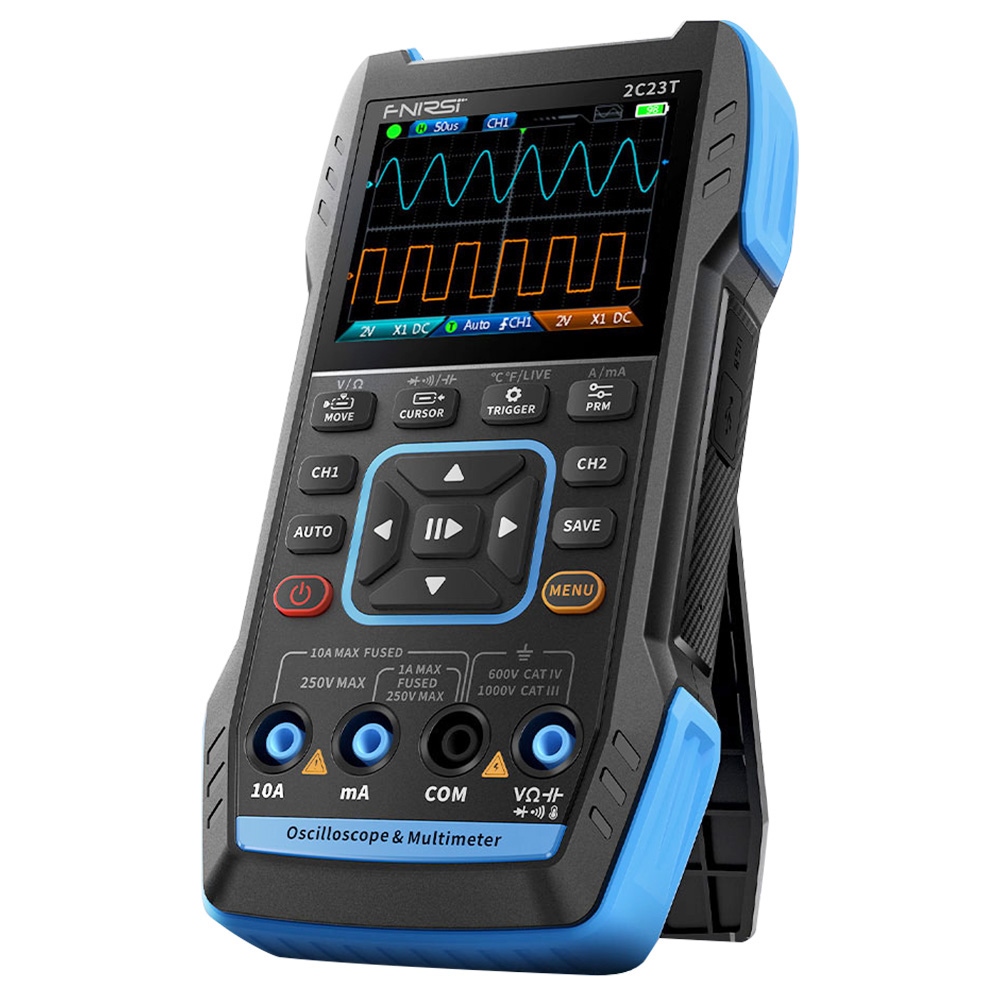

FNIRSI 2C23T 3 in 1 Digital Oscilloscope Multimeter Signal Generator + P6100 Probe, 2 Channels, 10MHz Bandwidth, 50MSa/s Sampling Rate, 9999 Counts
$84.99
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights
1. FNIRSI-2C23T is a fully functional, highly practical, three-in-one dual-channel digital oscilloscope designed for the maintenance industry and development industry. This device is equipped with three main functions: oscilloscope, multimeter, and signal generator.

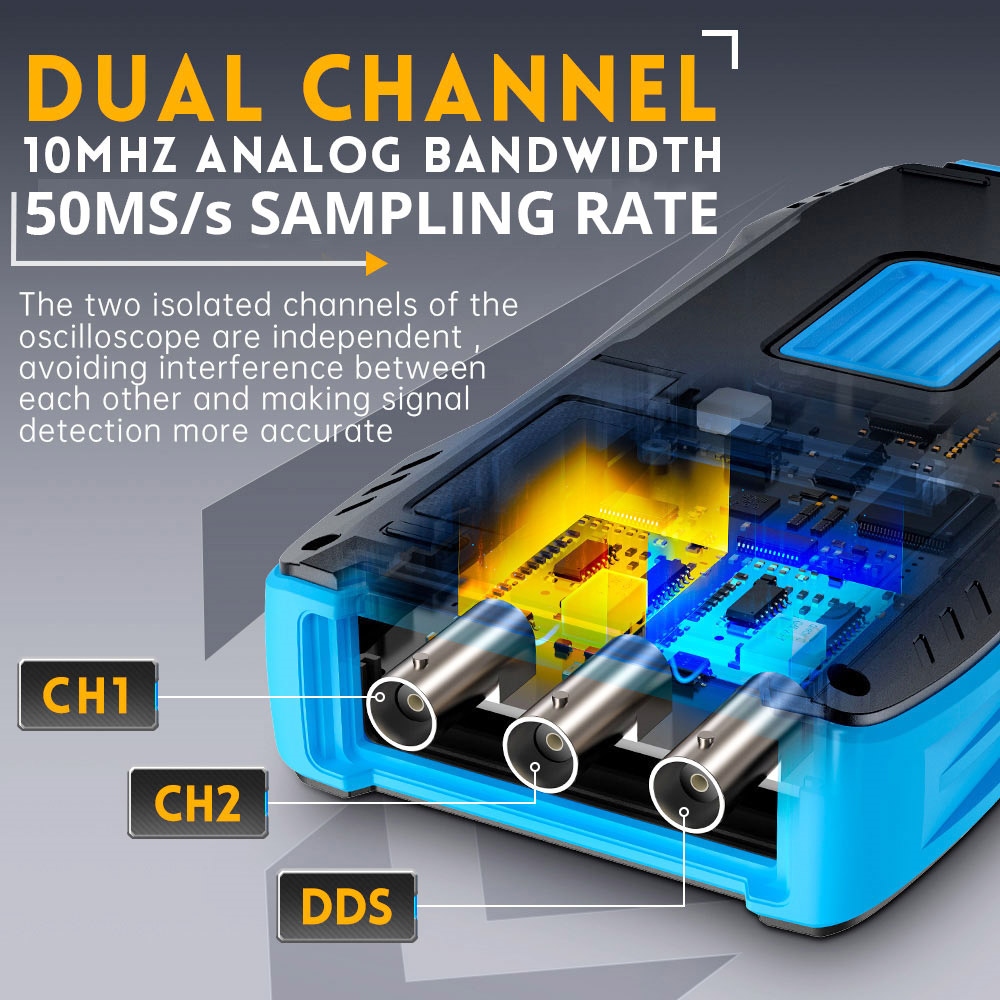

2. The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V.

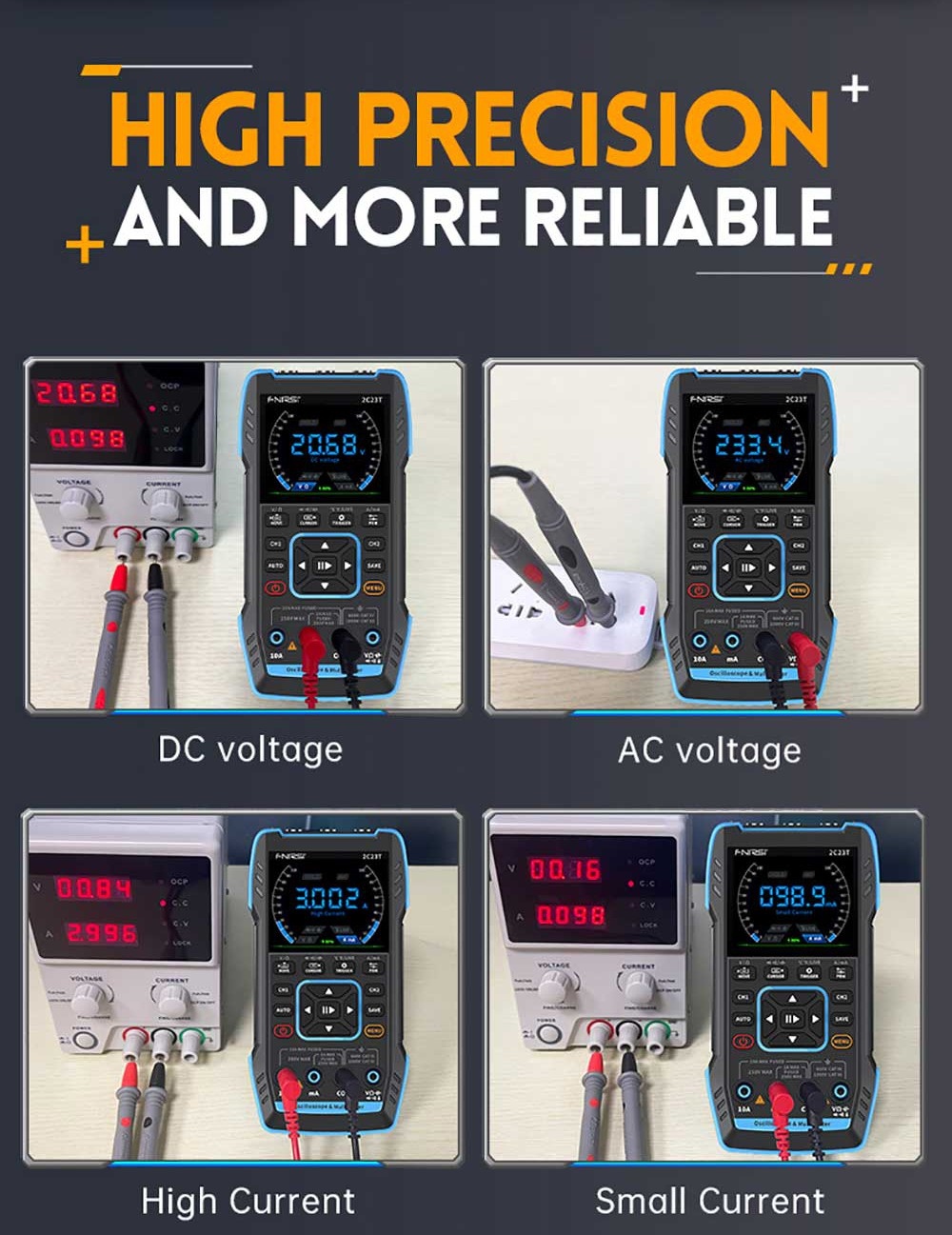

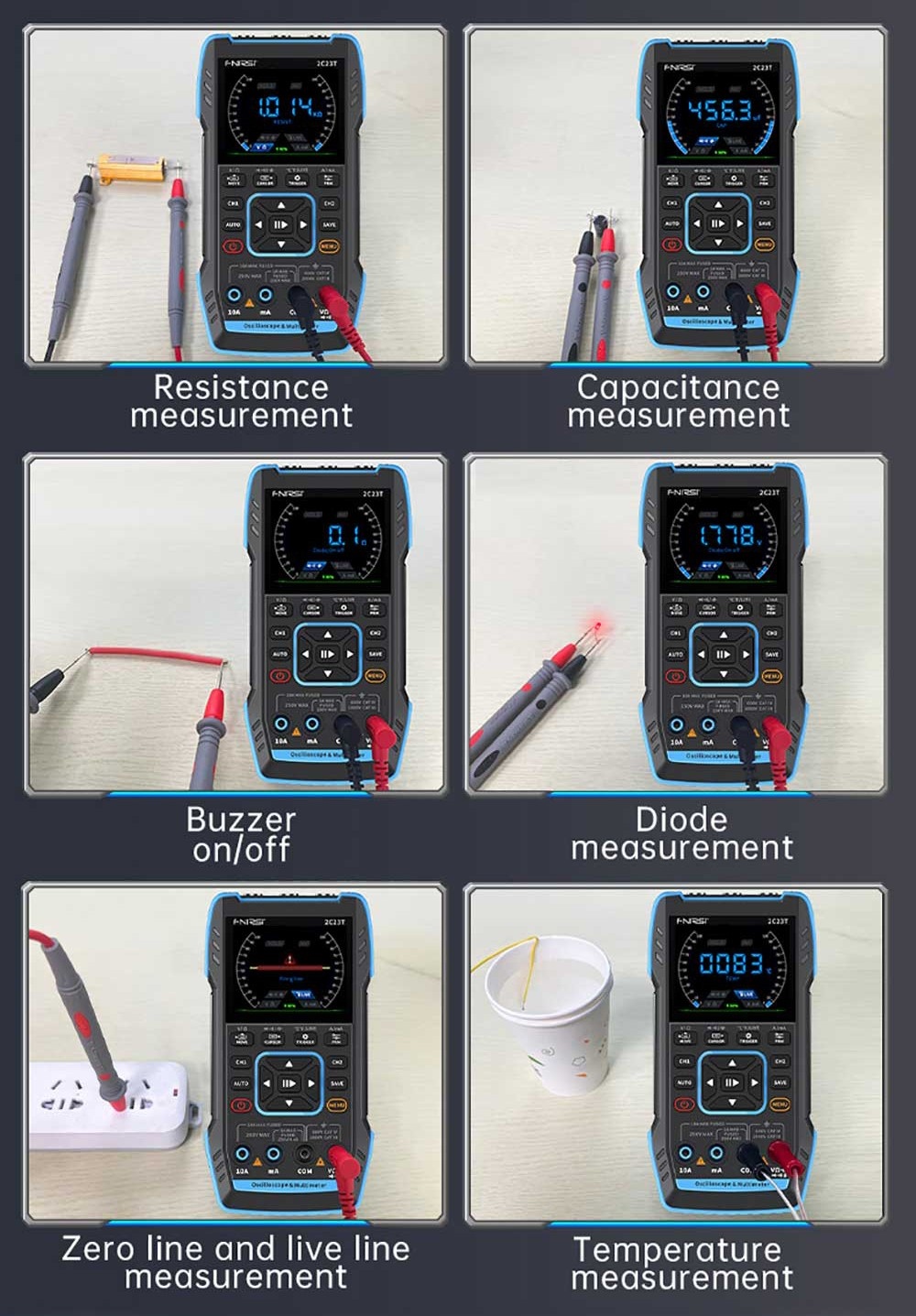

3. Support for saving and viewing waveform screenshots for analysis. The multimeter has a 4-digit 10000-point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off, and other measurement functions.

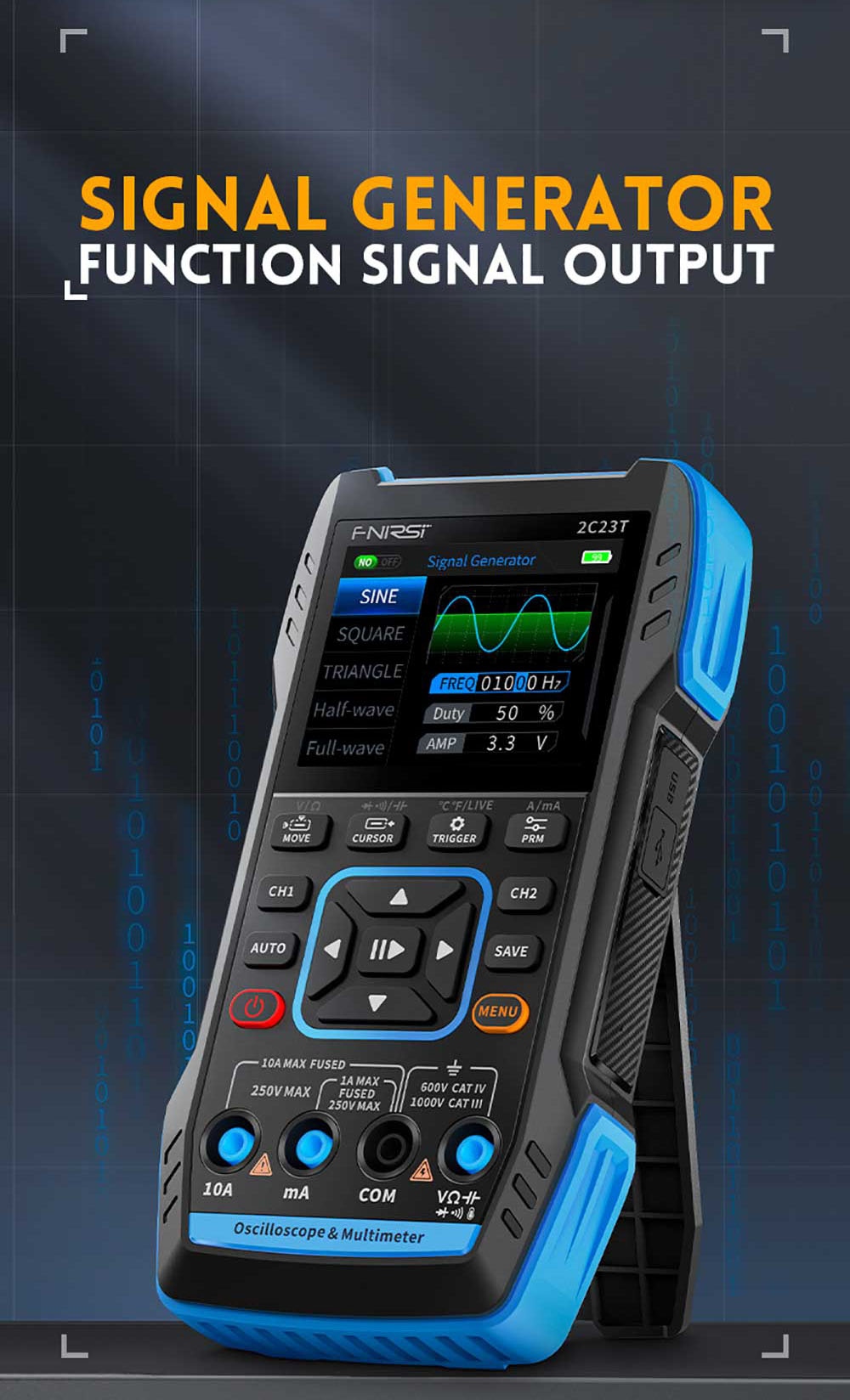

4. Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.
5. Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with more and stronger practical functions in a compact size while also having good portability.
6. Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.
Specification
| General | Brand: FNIRSI Type: Digital Oscilloscope Model: 2C23T+ P6100 Probe Color: Black+Blue |
| Specification | PRODUCT PARAMETER: Display screen: 2.8 inch HD color screen Resolution ratio: 320*240 Charging specifications: TYPE-C (5V/1A) Battery: 5000mAh lithium battery Support functions: Oscilloscope, Signal generator, Multimeter (view functional parameters for details) Standby time: 6h (laboratory theoretical maximum) Language: English, Russian, Portuguese, Japanese, German OSCILLOSCOPE PARAMETERS: FUNCTION SIGNAL GENERATOR PARAMETERS: MULTIMETER PARAMETERS: |
| Weight & Size | Product Weight: 300g Package Weight: 742g Product Size(L x W x H): 167x89x55mm Package Size(L x W x H): 255x128x85mm |

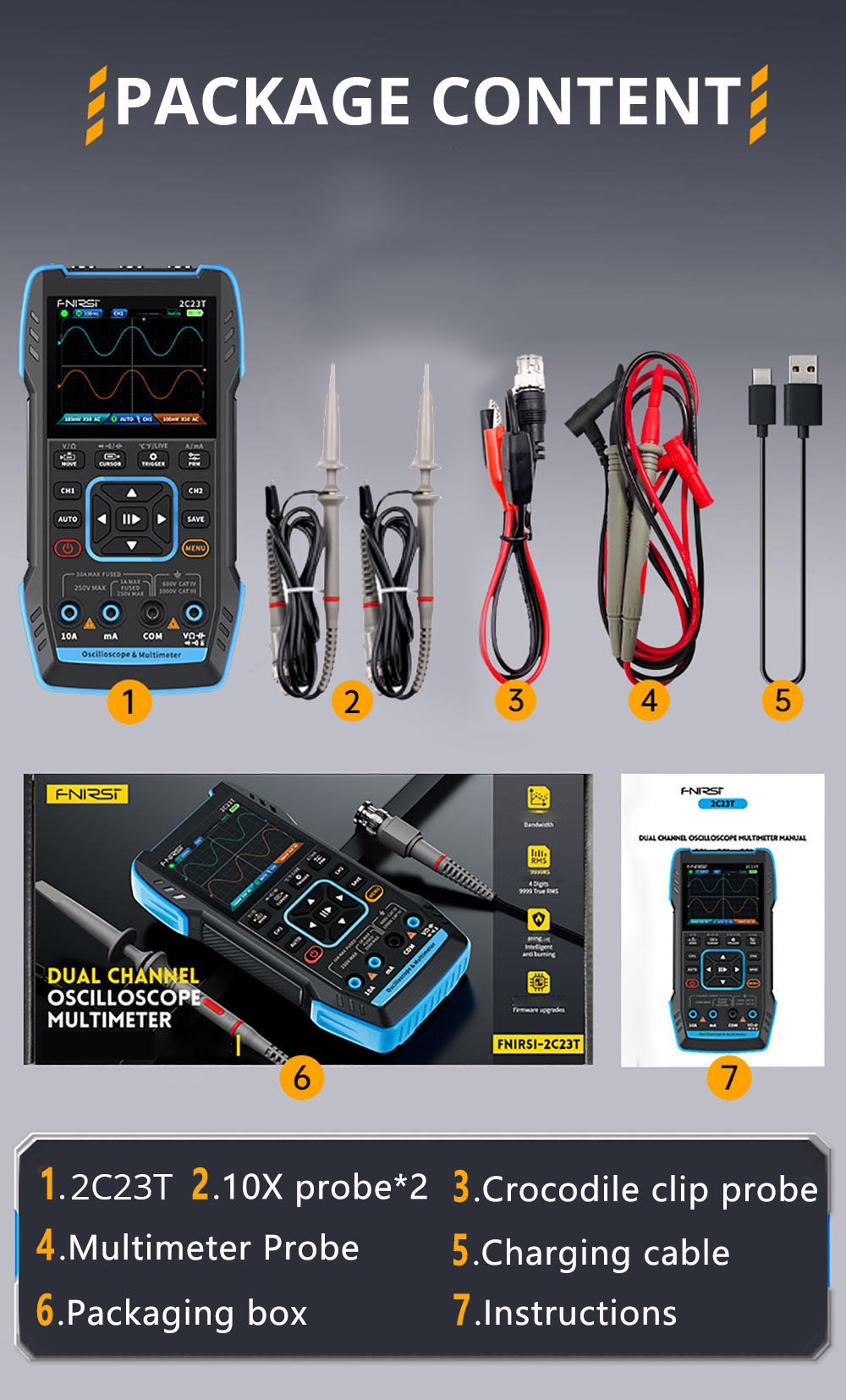

| Package Contents | 1 x 2C23T Digital Oscilloscope 2 x 10X Probes 1 x Crocodile Clip Probe 1 x Multimeter Probe 1 x Charging Cable 1 x User Manual |
| General | Brand: FNIRSI Type: Digital Oscilloscope Model: 2C23T+ P6100 Probe Color: Black+Blue |
| Specification | PRODUCT PARAMETER: Display screen: 2.8 inch HD color screen Resolution ratio: 320*240 Charging specifications: TYPE-C (5V/1A) Battery: 5000mAh lithium battery Support functions: Oscilloscope, Signal generator, Multimeter (view functional parameters for details) Standby time: 6h (laboratory theoretical maximum) Language: English, Russian, Portuguese, Japanese, German OSCILLOSCOPE PARAMETERS: Channel: Dual channel Sample rate:50MS/s Analog bandwidth: 10Mhz(dual channel independent 10M) Storage depth: 32kb Impedance: 1MΩ Time Base Range: 50ns-10s Vertical sensitivity: 20mV/div-10V/div (X1) Maximum measured voltage: ±400V Trigger mode: AUTO/Normal/Single Trigger type: Rising edge, F |
| Weight & Size | Product Weight: 300g Package Weight: 742g Product Size(L x W x H): 167x89x55mm Package Size(L x W x H): 255x128x85mm |
| Package Contents | 1 x 2C23T Digital Oscilloscope 2 x 10X Probes 1 x Crocodile Clip Probe 1 x Multimeter Probe 1 x Charging Cable 1 x User Manual |
| SKU | 522756 |
