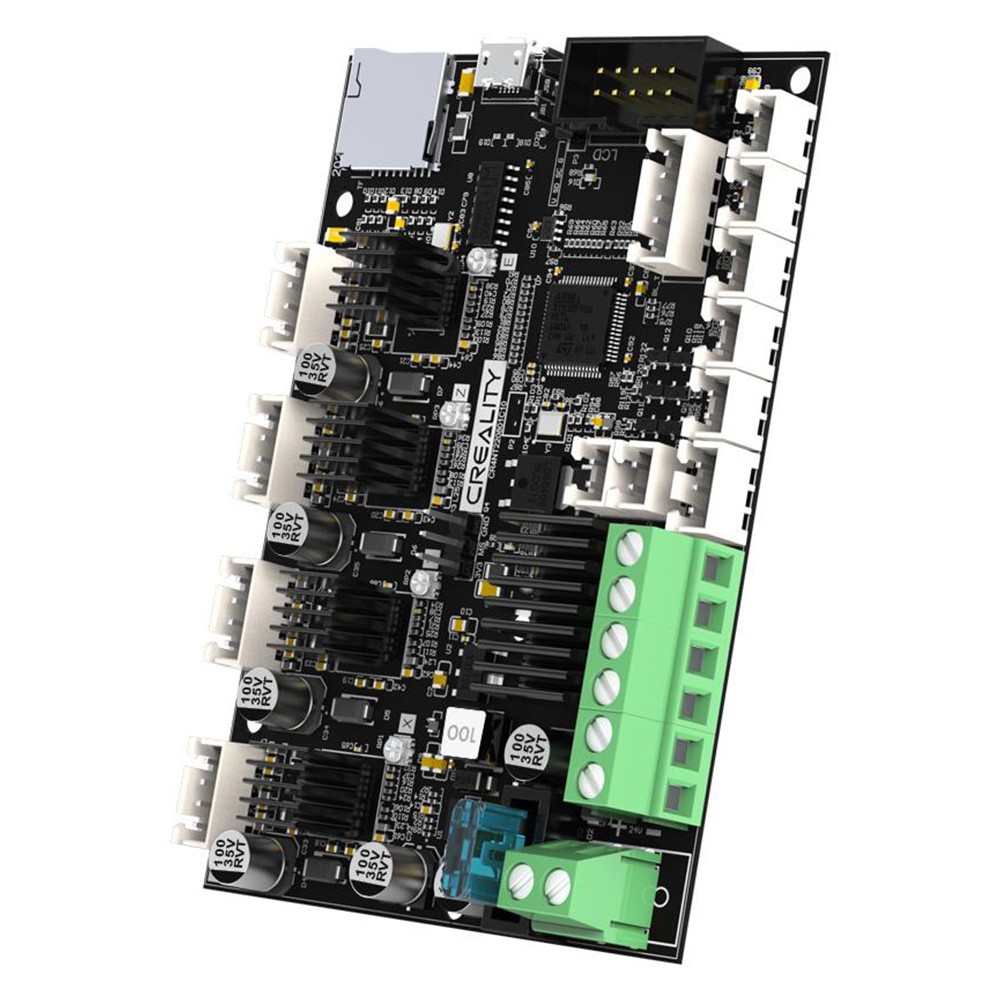

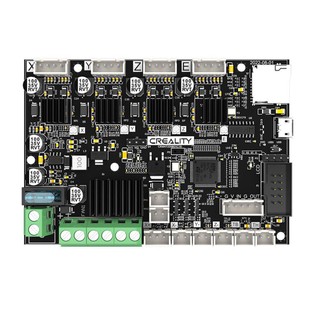

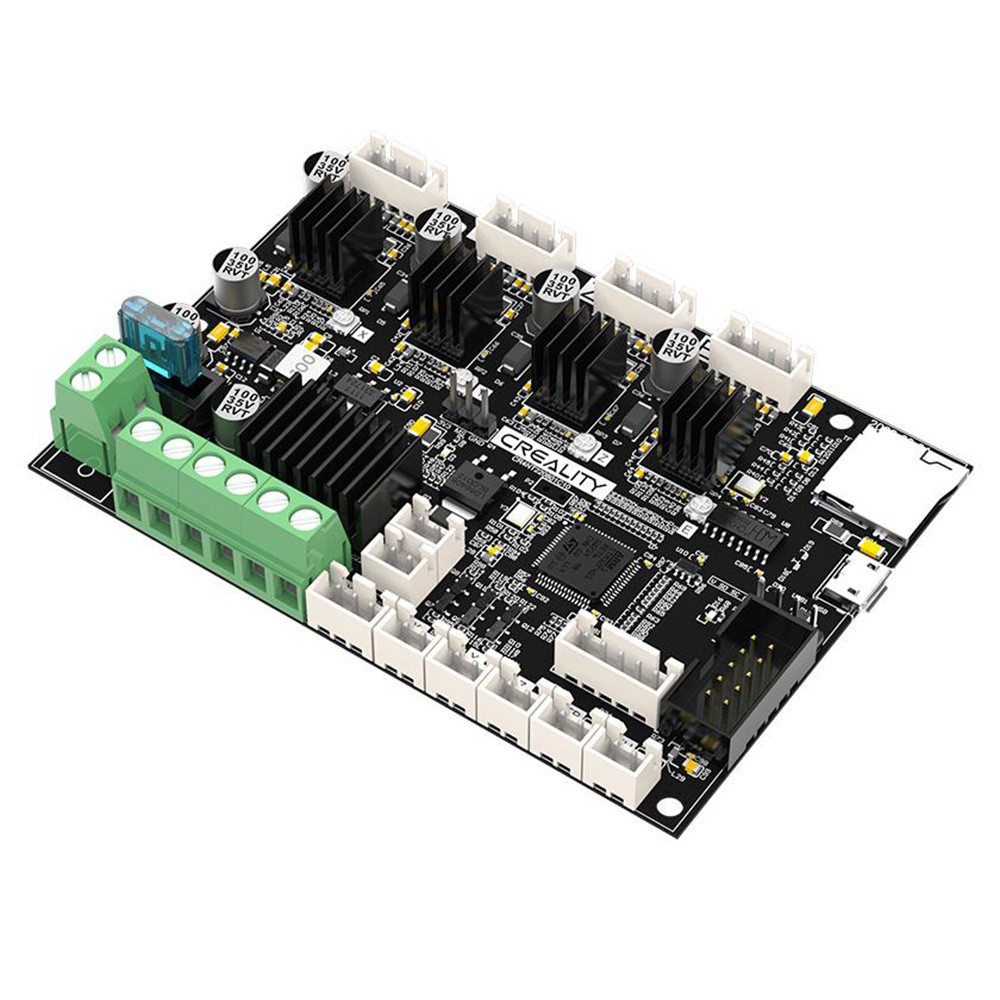

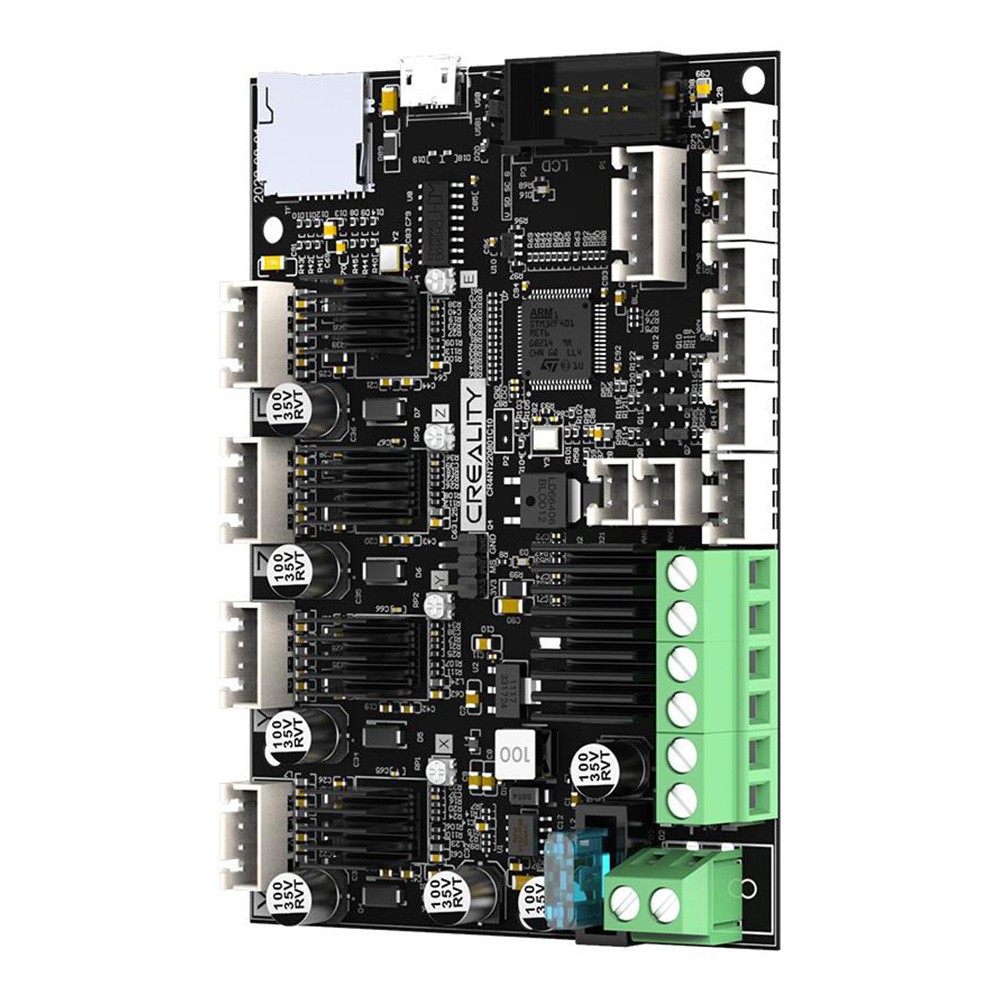

Creality E3 Free-runs TMC2209 32-bit Open Source Motherboard
$36.99
VAT included. Shipping calculated at checkout.
Out of Stock
Free shipping from local warehouse
30-day hassle-free returns
Secure payments
WintopaySecure checkoutCredit and debit card payments are processed by WintopayVISAMC
Highlights
- for Ender 3/3 Pro/3 V2 Neo/3 Max Neo/Ender-5 Pro
Compatible with Marlin and Klipper Firmware
Features drive and control integration, the motherboard can run Marlin firmware alone, or freely run Klipper firmware with Raspberry Pi.
Ultra Quiet Drive
Onboard TMC2209's UART Mode - ultra quiet adjustable drive current via serial port for powerful output and effective noise reduction.
Reliable Design & Excellent Heat Dissipation
Adopting four-layer immersion gold process, this silent motherboard is stable and reliable. Independent cooling to enhance drive heat dissipation.
More Extended Function Interface
It supports auto-leveling, filament run-out detection, and power resume, and is easy to install and DIY.
Specification
| General | Brand: Creality Type: Motherboard Model: E3 Free-runs Color: Black |
| Specification | Input Voltage: DC 12-24V Logic Voltage: 3.3V/5V Main Control Chip: STM32F401RET6 Motor Drive: TMC2209 Drive Interface: XM, YM, ZM, EM Temperature Sensor Interface: TB, TH (2-way 100K NTC) Communication Interface: USB Micro B Support Firmware: Marlin, Klipper Compatible Models: Ender-3/Ender-3 S/Ender-3pro/Ender-3 V2/Ender-3 Max/Ender-3 Neo/Ender-3 V2 Neo/Ender-3 Max Neo/Ender-5/Ender-5 Pro/CR-10/CR-10 mini |
| Weight & Size | Product Weight: 60g Package Weight: 118g Product Size(L x W x H): 100x70x20mm Package Size(L x W x H): 150x115x45mm |
| Package Contents | 1 x Motherboard |
| General | Brand: Creality Type: Motherboard Model: E3 Free-runs Color: Black |
| Specification | Input Voltage: DC 12-24V Logic Voltage: 3.3V/5V Main Control Chip: STM32F401RET6 Motor Drive: TMC2209 Drive Interface: XM, YM, ZM, EM Temperature Sensor Interface: TB, TH (2-way 100K NTC) Communication Interface: USB Micro B Support Firmware: Marlin, Klipper Compatible Models: Ender-3/Ender-3 S/Ender-3pro/Ender-3 V2/Ender-3 Max/Ender-3 Neo/Ender-3 V2 Neo/Ender-3 Max Neo/Ender-5/Ender-5 Pro/CR-10/CR-10 mini |
| Weight & Size | Product Weight: 60g Package Weight: 118g Product Size(L x W x H): 100x70x20mm Package Size(L x W x H): 150x115x45mm |
| Package Contents | 1 x Motherboard |
| SKU | 519078 |
